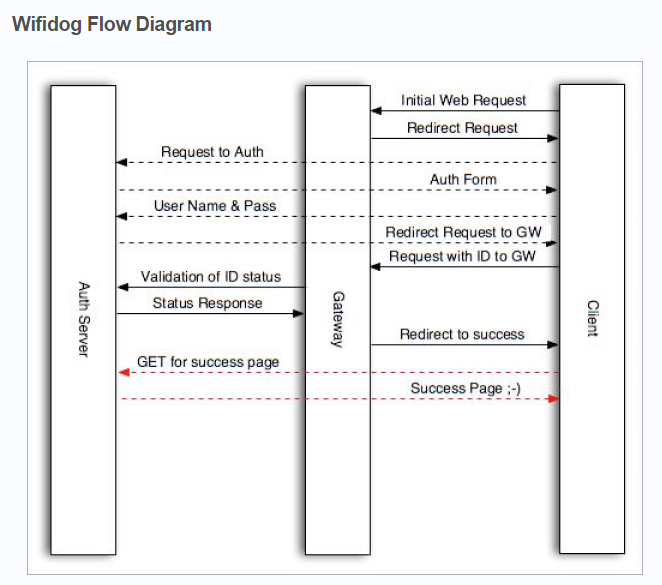

认证流程如下图:

北京联动北方科技有限公司

认证流程详解:

1.Login登录(参照 login/index.php)

服务器验证后,Redirect to GW,携带 token

http://$_REQUEST[gw_address]:$_REQUEST[gw_port]/wifidog/auth?token=$token
2.Validation of ID


服务器返回 Status

Auth: 1


Messages: | 认证信息(如错误之类的消息)

common.php中有如下定义:

/* Constant shared with the gateway
· NEVER edit these, as they mush match the C code of the gateway */
define('ACCOUNT_STATUS_ERROR', -1);
define('ACCOUNT_STATUS_DENIED', 0);
define('ACCOUNT_STATUS_ALLOWED', 1);
define('ACCOUNT_STATUS_VALIDATION', 5);
define('ACCOUNT_STATUS_VALIDATION_FAILED', 6);
define('ACCOUNT_STATUS_LOCKED', 254);


auth.h中也有相应定义:

/**
* @brief Authentication codes returned by auth server.
*
* Authentication result codes returned by auth_server_request() corresponding
* to result code from the central server itself.
*/
typedef enum {
      AUTH_ERROR = -1, /**< An error occured during the validation process*/
      AUTH_DENIED = 0, /**< Client was denied by the auth server */
      AUTH_ALLOWED = 1, /**< Client was granted access by the auth server */
      AUTH_VALIDATION = 5, /**< A misnomer. Client is in 15 min probation to validate his new account */
      AUTH_VALIDATION_FAILED = 6, /**< Client had X minutes to validate account by email and didn't = too late */
      AUTH_LOCKED = 254 /**< Account has been locked */
} t_authcode;


--转自 北京联动北方科技有限公司
